Product Code: 13230
Availability:
in stock
Aluminium Door Threshold T Bar Trim Adjustable Height/Pivots Easy Clip
Select Variation:
Description
Aluminium Door Threshold T Bar Trim Adjustable Height/Pivots Easy Clip
- Quality professional Aluminium 40mm door threshold, that is adjustable in height & can also tilt if required to suit different level floors, it is supplied with small & large clips to accommodate different flooring heights.
- The threshold provides the perfect finish to any floor types.
- It is suitable for joining wood, laminate, tile and other flooring.
- These profiles can be easily cut to size using a hacksaw and secured to wood or concrete sub floor with nails or screws.

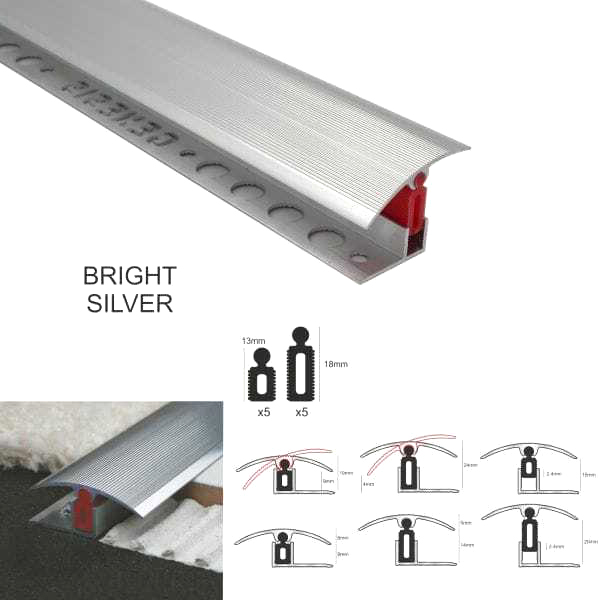

- Please look at the technical drawings to see few height options the profile can do.
Installation
- Ensure that the cover is of adequate width to bridge the gap between the two floor coverings
- Fit the Aluminium base securing with contact adhesive or mechanically fix
- Slide the relevant sized clips onto the cover 2-3cm from either end with the remainder evenly spaced
- Align clips with the base and apply even pressure lowering the clips into the Channel, once the connection is secure a rubber mallet can be used to achieve the final position.
- Maximum height of floors on different level is 24mm
- Covers flooring at the same level from 9mm up to 20mm in height
- Suitable for All types of flooring
- Easy Clip Easy Fit System
- Screws are required for fitting
Dimensions:
- 920mm x 40mm
