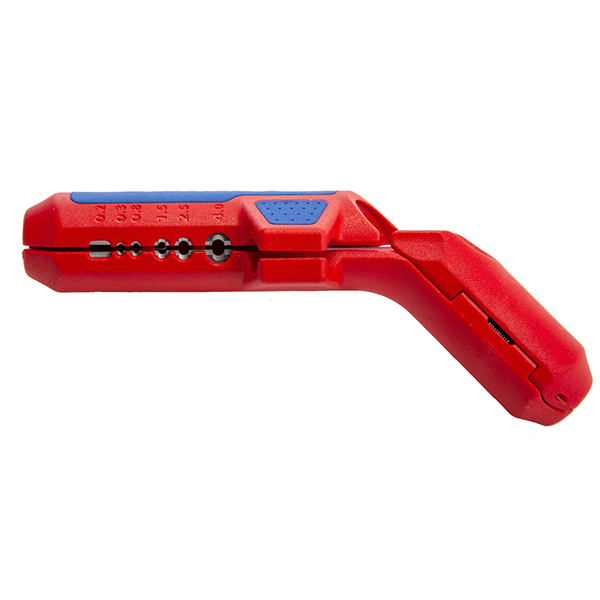

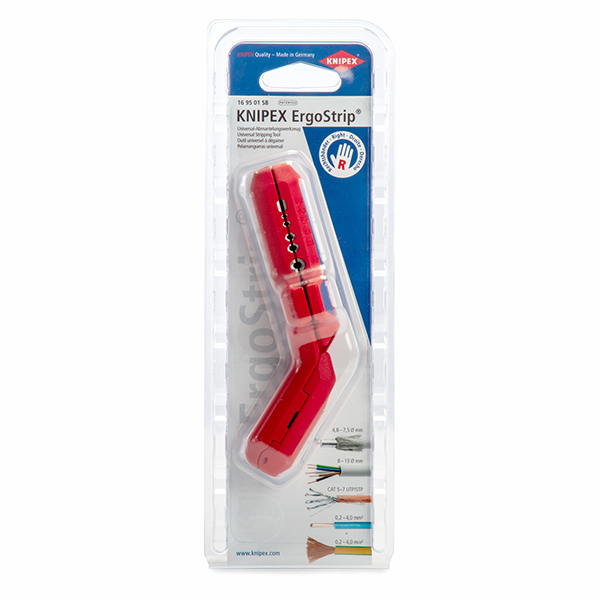

Ergo Strip Universal Stripping Tool

Description

Ergo Strip Universal Stripping Tool
The ErgoStrip Wire Strippers are designed to strip the insulation from a variety of wires and cables including common round wires, damp-proof installation cables, data cables and coax cables. The ErgoStrip is specially designed for extra comfort and ease of cutting with its ergonomic pistol grip design. You can strip wires from 0.2 - 4.0 mm² max as well as cut the insulation lengthwise.

Features:

• Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath
• Conical, slimmed-down tool ends for better access in confined areas
• Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²
• Simplified insertion of single wires for stripping using location ridges
• With opening spring and locking device
• Easy insertion of coax and data cable thanks to opening aid
• Multi-component design with a soft plastic zone for comfortable use and a secure grip
• Housing made from stable glass fibre reinforced plastic

Specification:

• Stripping capacities round cable (diameter): Ø 8 – 13 mm
• Stripping capacities in square millimetres: 0.2 — 4.0 mm²
• Stripping capacities for coax cable (diameter): Ø 4.8 – 7.5 mm
• Wire stripping value for data cable: CAT 5 - 7, Twisted pair (UTP/STP)
• Stripping capacities: Ø 8.0 — 13.0 mm
